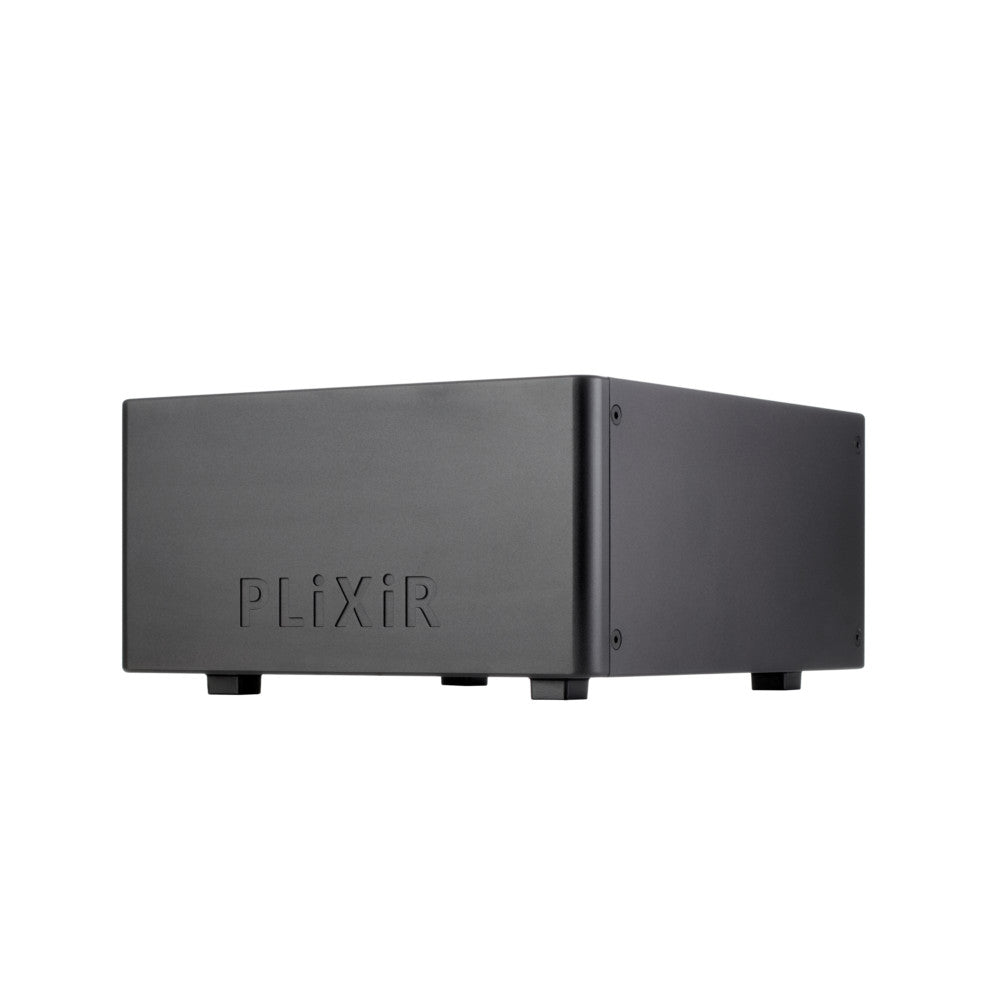

Elite BAC 1000

Our PLiXiR Elite BAC 1000 power conditioner is the best mains AC power conditioning product for your Hi-fi system; 1000Watts of Pure Tone* power capable to support up to 150W per channel stereo Hi-fi systems. It is designed to naturally reduce the incoming AC mains noise while improving the current delivery to your system. Based on a custom single winding balanced power transformer, ground loop current and noise is reduced to negligible level to equipment connected to it, making it suitable for sensitive equipment like turntable and phono stages. It is the ultimate grounding box for your whole Hi-fi system. Options are available to upgrade using Cryo-ed receptacle.

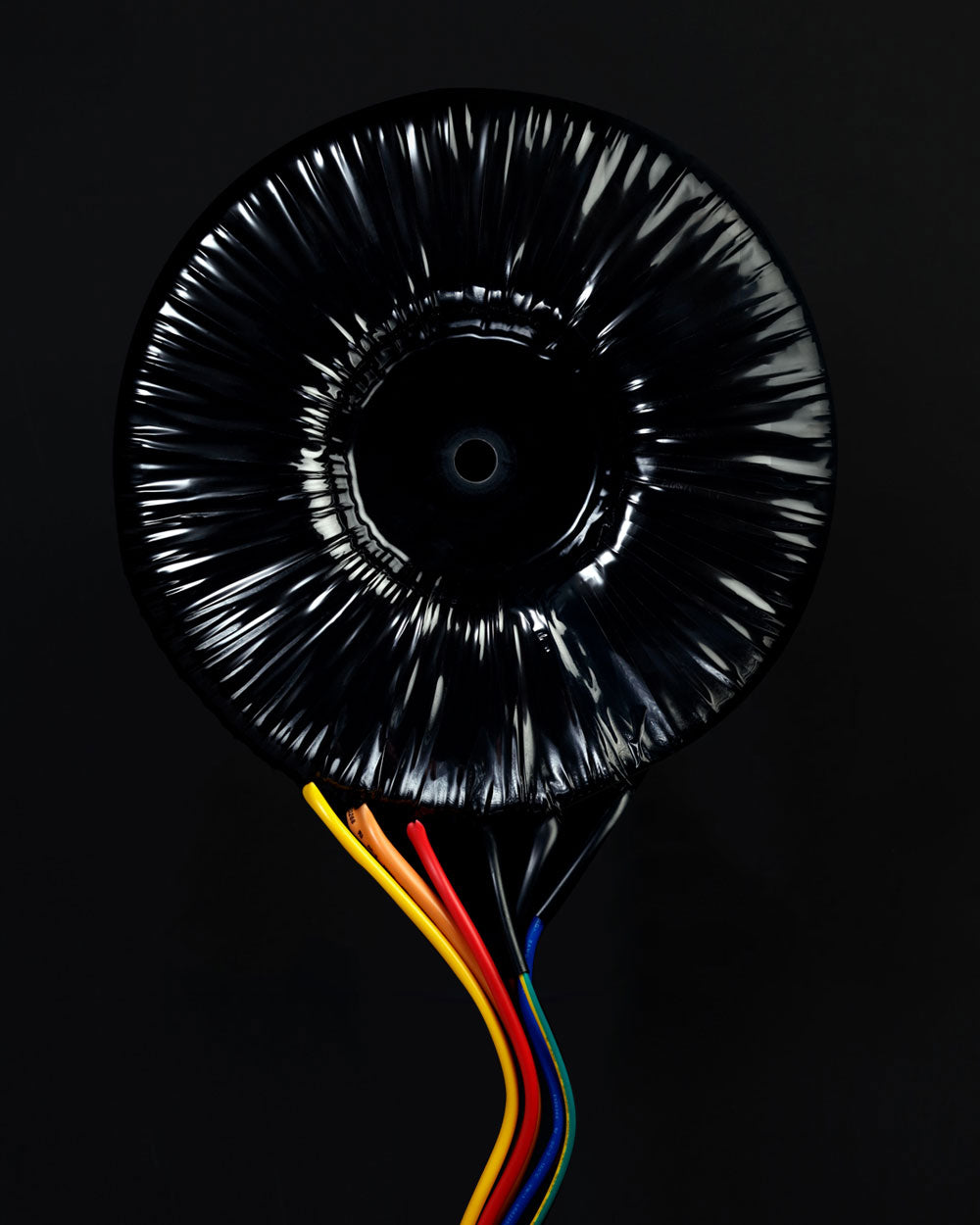

Noratel Transformer

We only use custom-wound balanced transformers with Noratel XQ eXtra Quiet noise attenuation technology. The transformer has dedicated models for 120 Vac input and 230 Vac output, and each transformer only has a single winding for their intended application for the best performance possible.

- Easy attenuation of high-frequency noise
- Lower output impedence vs. the wall-socket mainsYour equipment can draw power effortlessly.
- Balanced circuit of the transformerimproves common-mode noise rejection.
- Ground-referenced AC power supplyto your equipment lowers noise floor and reduces common hum and hiss noise issues.

All the benefits are achieved in a natural way: the epitome of good engineering precisely built in accordance to our concept of PureTone.

Technology and Craft

Our Elite balanced power conditioners features the highest grade power transformer from Noratel, the inventor and premier toroidal power transformer manufacturer. Customised to our exact spec and with proprietary XQ (eXtra Quiet) technology, our Elite balanced power conditioner provides the best noise isolation, power conditioning and optimal systems grounding for your hifi system in a single package.

Learn More

Other Features

CasingExtra rigid aluminium vault casing – Thick precision extruded and CNC machined aluminium slabs form the casing for the PLiXiR Elite BAC 1000. The bottom plate is a hefty 8mm thick plate of aluminium that anchors the whole casing.

Master-craftedBuild and tested by Master craftsman -- Each BAC is hand-made by a master craftsman. As much as possible, all electrical connections are done by point to point direct soldering with minimal use of connectors and joints that degrades sound.

Specifications

Voltage variants

currently available in 220-240V only.

Input 220~240Vac to output 220~240Vac balanced 50hz,4.3Amps peak continuous current delivery.

Idle power consumption

Less than 1.5% of Max power.

Weight

17 kg

Dimensions (in mm)

240x260x130

Casing Finish

Black anodized, sandblasted aluminium

Elite BAC 1000

Input/Output

Socket

Quantity

$2,124.00 (W/out GST)

$2,124.00 (With GST)
