Elite BAC 3000 Pre-Conditioner

Input/Output:

100Vac~120Vac 220Vac~240Vac

Variant

EOL soon.. please contact us for more information. Email to: sales@mysoundaffairs.com or plixir@mysoundaffairs.com

In addition to the Elite BAC 3000, we uniquely offer a special pre-conditioner model, the Elite BAC 3000 PreCon, which serves as a foundation for other distributor / filter types of AC power products. The PreCon model, with its 2 outlets, is designed to work in conjunction with these products, offering ground loop noise elimination and AC power pre-conditioning for these products to work even better. For customer reviews, please click here.

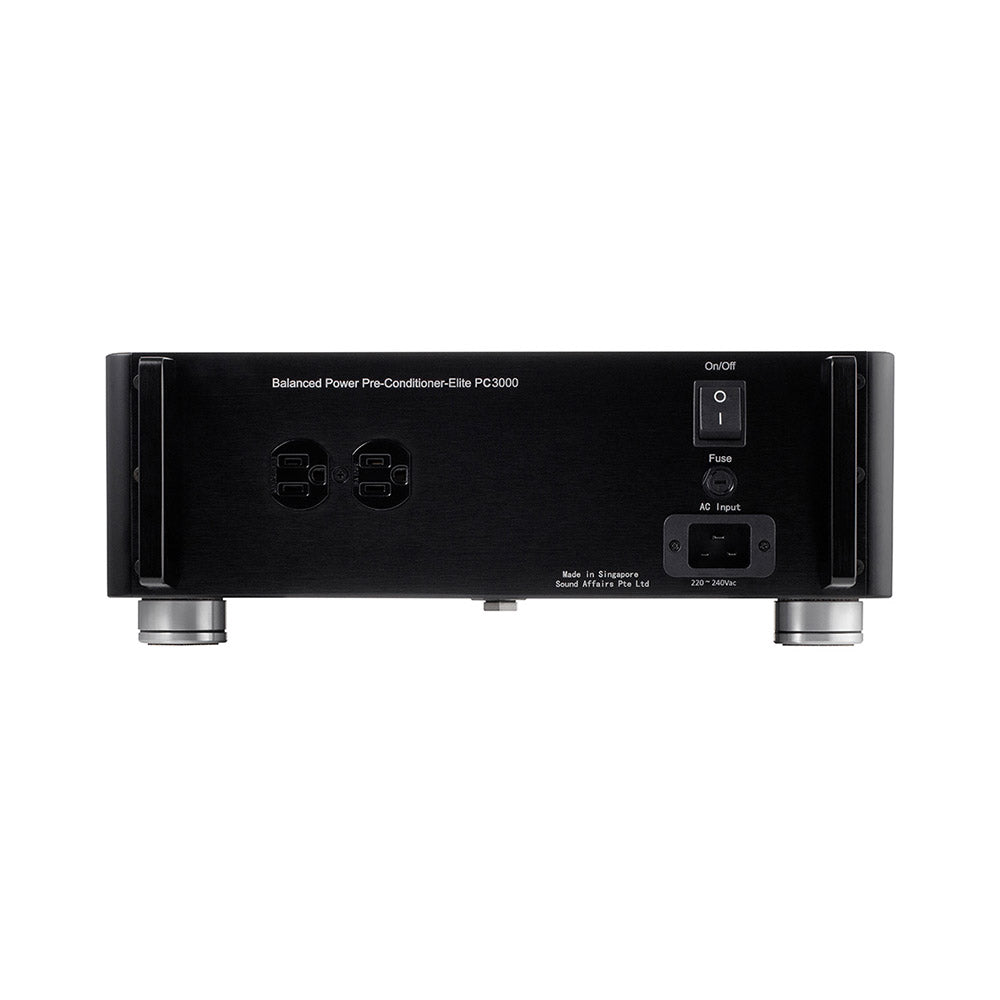

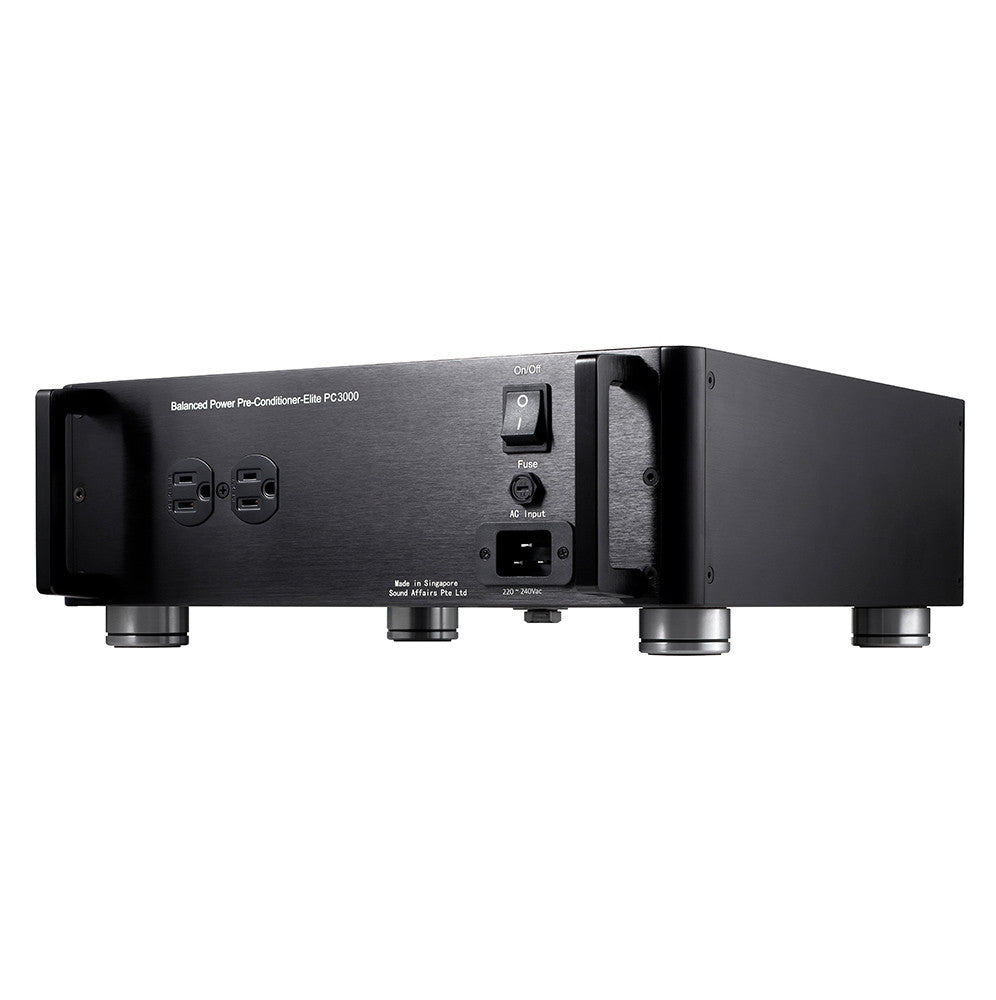

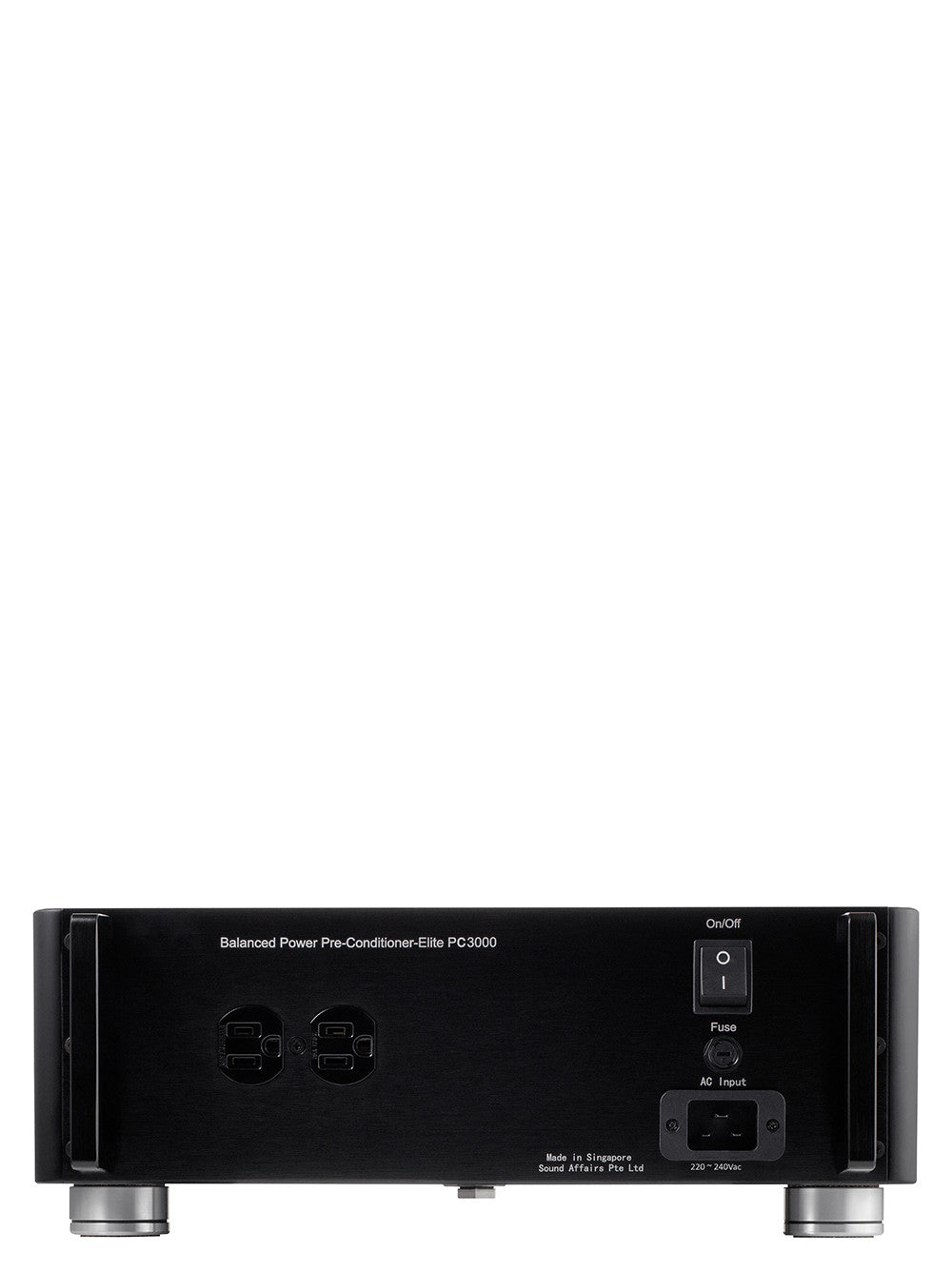

- Two USA outlets Pre-conditioner model. Designed as a power conditioner for power distributor / sound tuning filter types of AC power products. Applicable as high current power conditioner for power amp use only.
- Custom-wound balanced transformers with Noratel XQ (eXtra Quiet) noise attenuation technology.
- Single-winding transformer dedicated models for 120 Vac and 230 Vac input/output, and each transformer only has a single winding for their intended application for the best performance possible.

Specifications

No. of Sockets (USA): 2
Max Power: 3000W
Typical Power Amp Supported: 600W into 4 Ohm (2 Channel Class A/B)

Two voltage variants
1. Input 100~120Vac to output 100~120Vac balanced 60hz, 26Amps peak continuous current delivery.
2. Input 220~240Vac to output 220~240Vac balanced 50hz, 13Amps peak continuous current delivery.

Weight in KG: 40.0
Dimensions in CM: 38.0 x 35.0 (39.0 with handlers) x 14.5
(Width x Depth x Height*)
* Height including footers.

Casing Finish
Black anodized, sandblasted aluminium

Technology and Craft

Our Elite balanced power conditioners features the highest grade power transformer from Noratel, the inventor and premier toroidal power transformer manufacturer. Customised to our exact spec and with proprietary XQ (eXtra Quiet) technology, our Elite balanced power conditioner provides the best noise isolation, power conditioning and optimal systems grounding for your hifi system in a single package.

LEARN MORE

Other Features

Casing

Extra rigid aluminium vault casing – Thick precision extruded and CNC machined aluminium slabs form the casing for the PLiXiR Elite BAC 3000. The bottom plate is a hefty 8mm thick plate of aluminium that anchors the whole casing.

Vibration Control

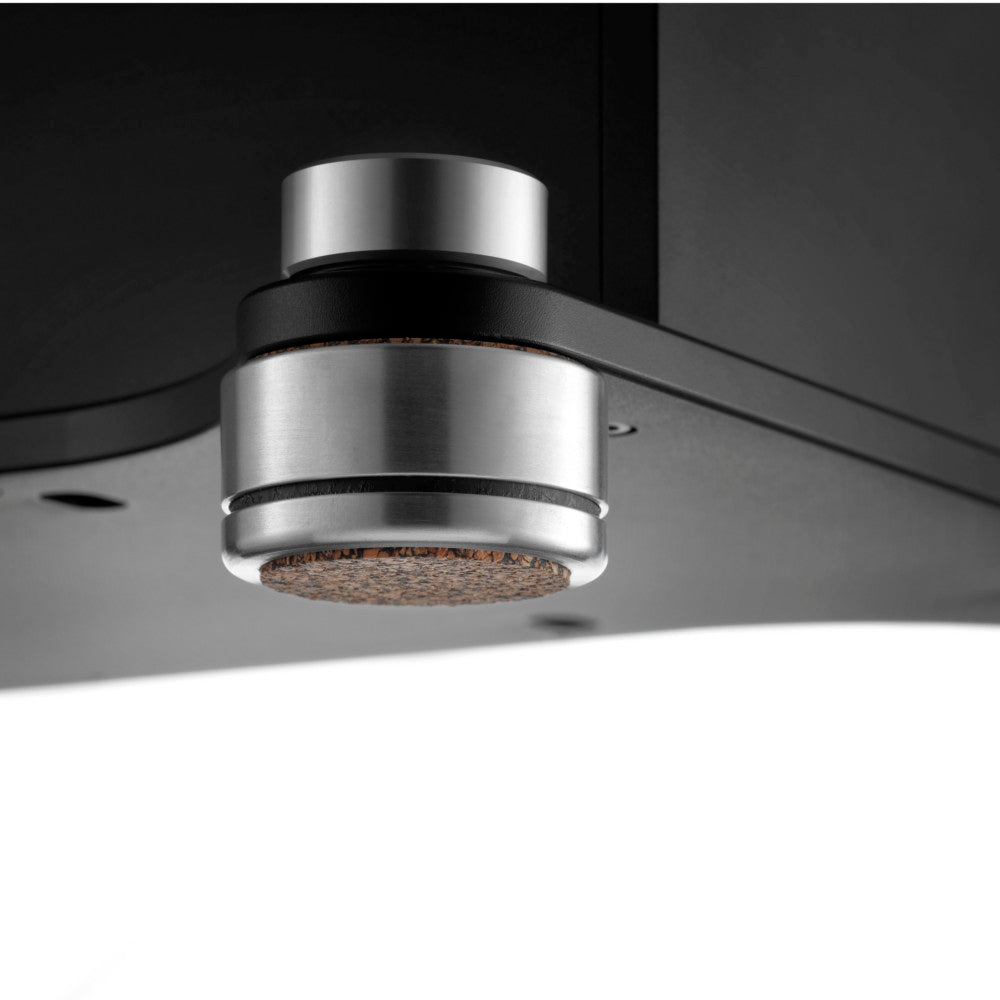

Isolated by Bfly Audio - Bfly Audio Master Pro-Feet Series isolation footers from Germany are installed onto PLiXiR Elite BAC 3000. They isolate the Elite BAC 3000 from the ill effects of self and environmental vibration and contribute to the natural sound of the Elite BAC 3000.

Master-crafted

Build and tested by Master craftsman -- Each BAC is hand-made by a master craftsman. As much as possible, all electrical connections are done by point to point direct soldering with minimal use of connectors and joints that degrades sound.

Elite BAC 3000 Pre-Conditioner
