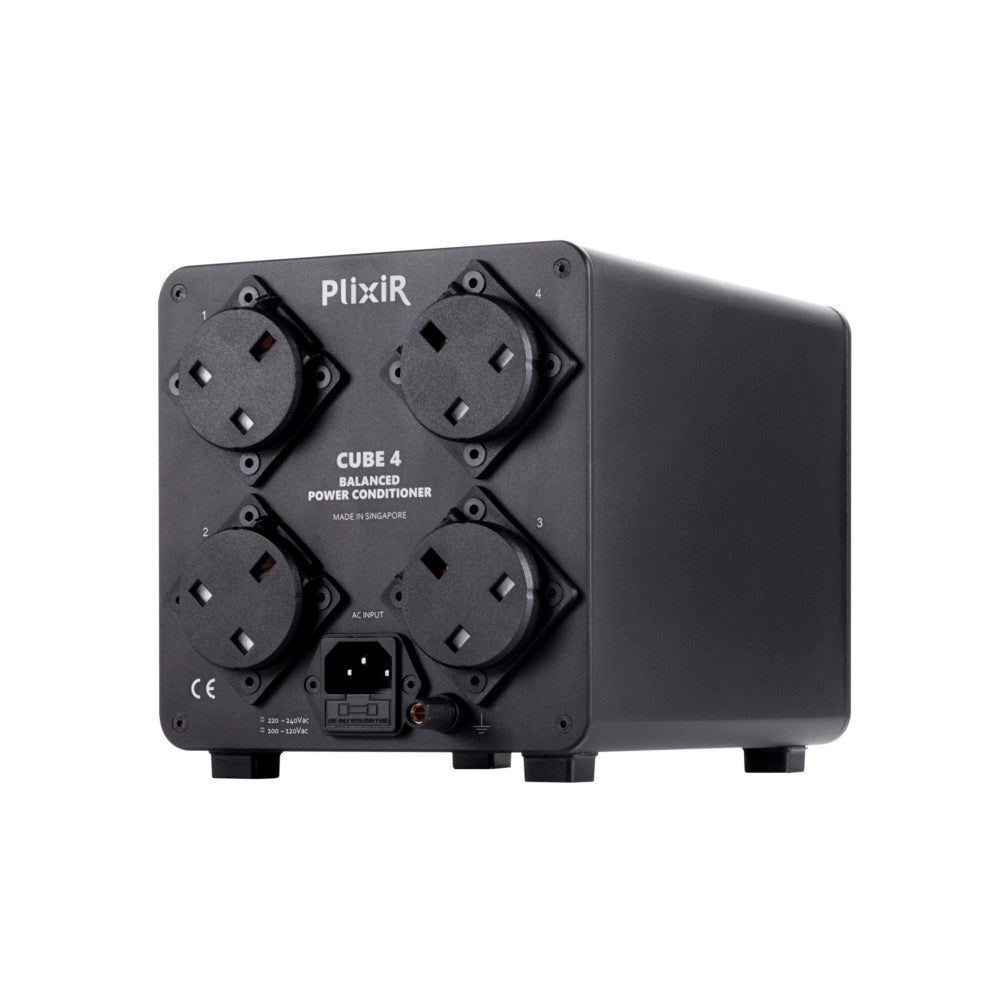

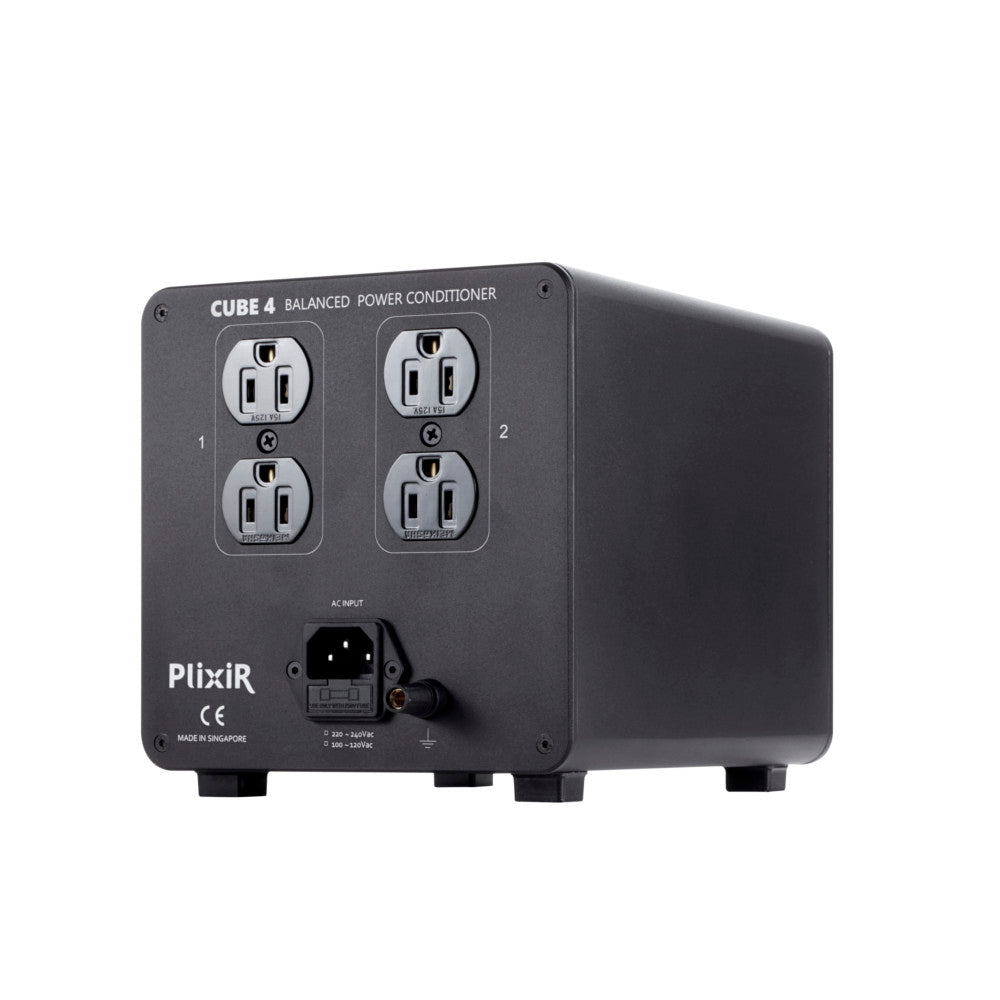

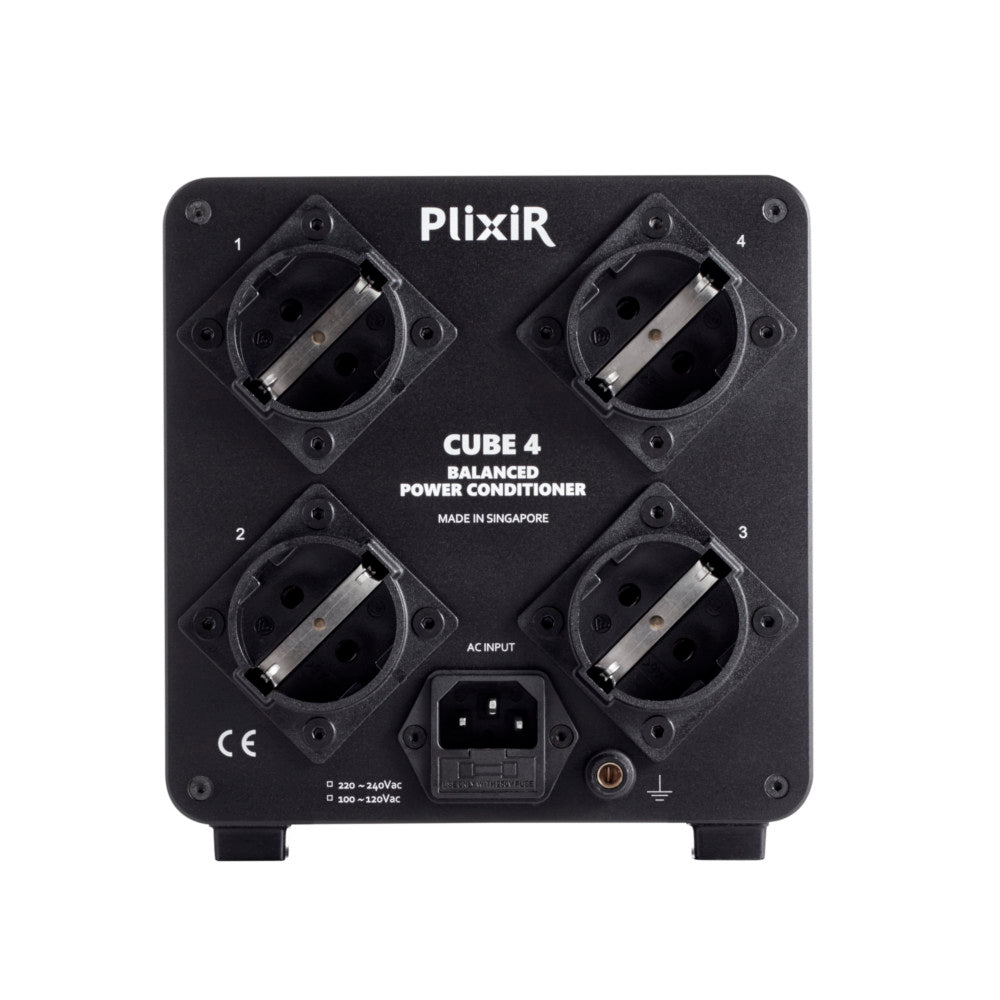

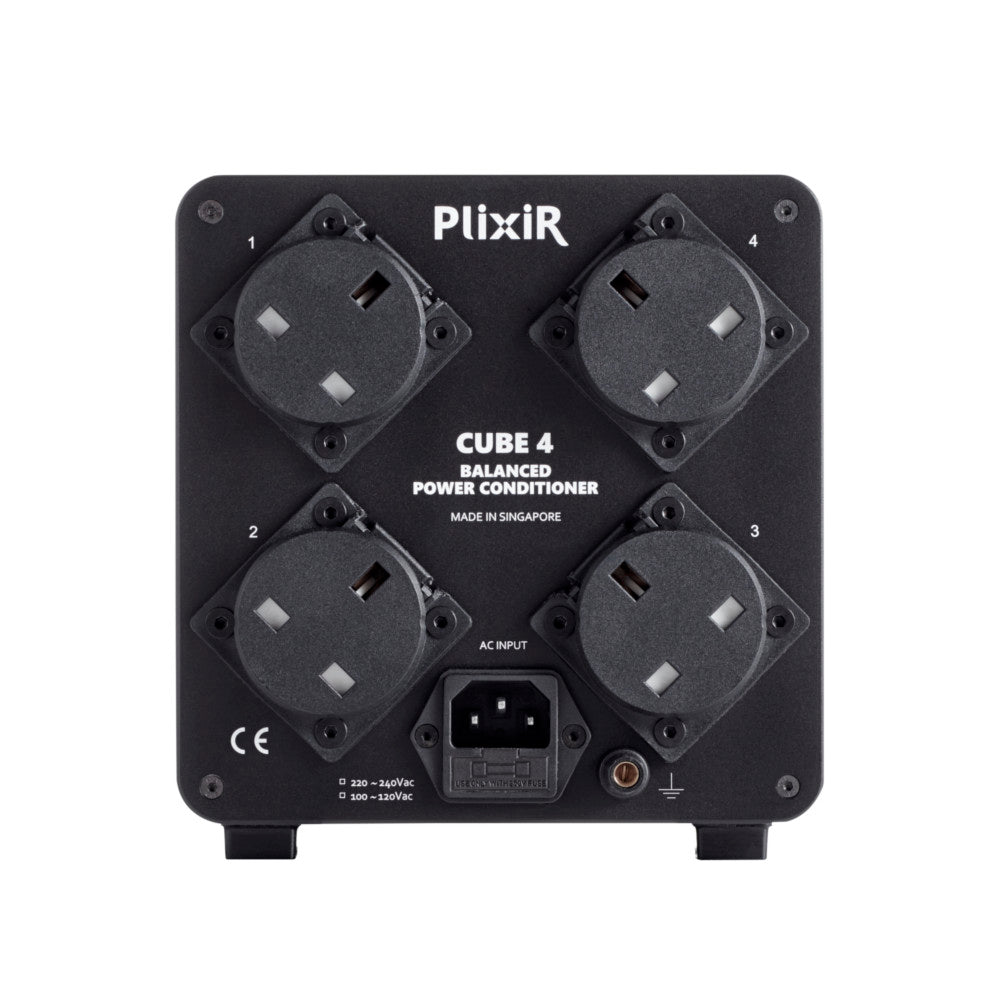

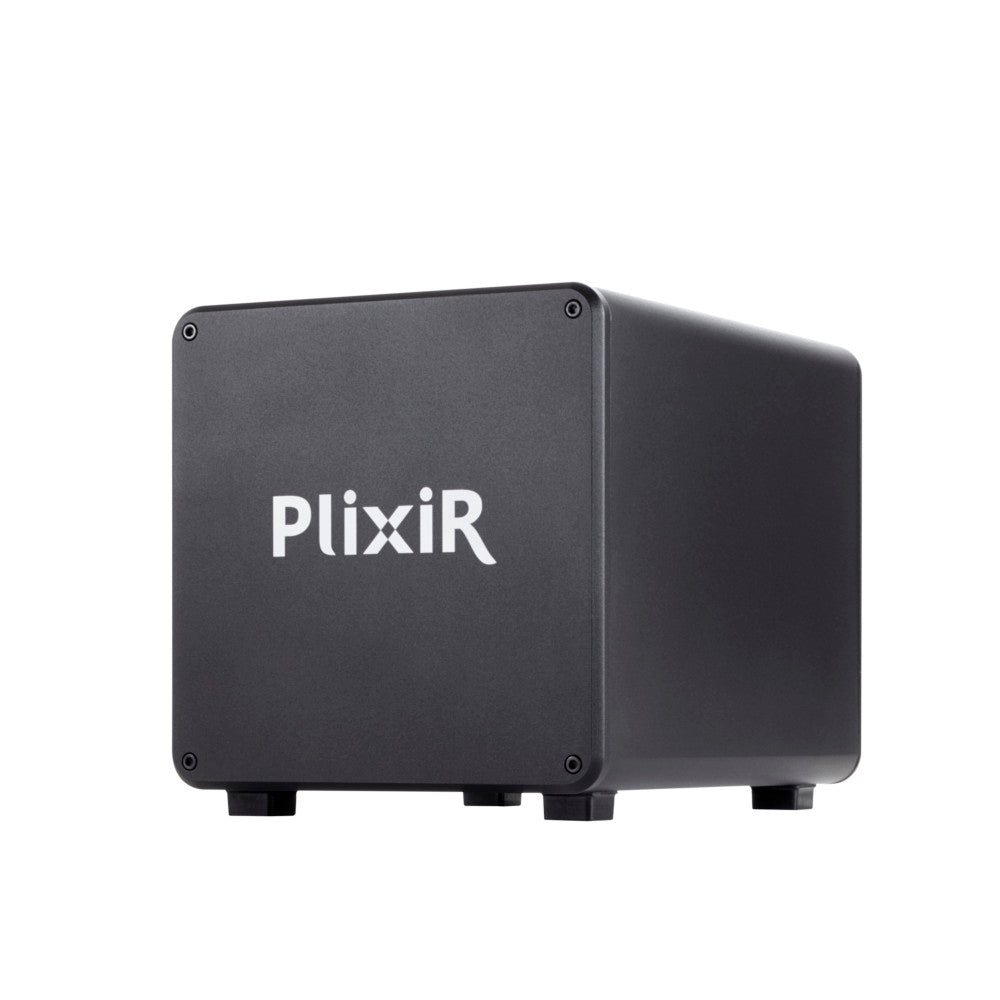

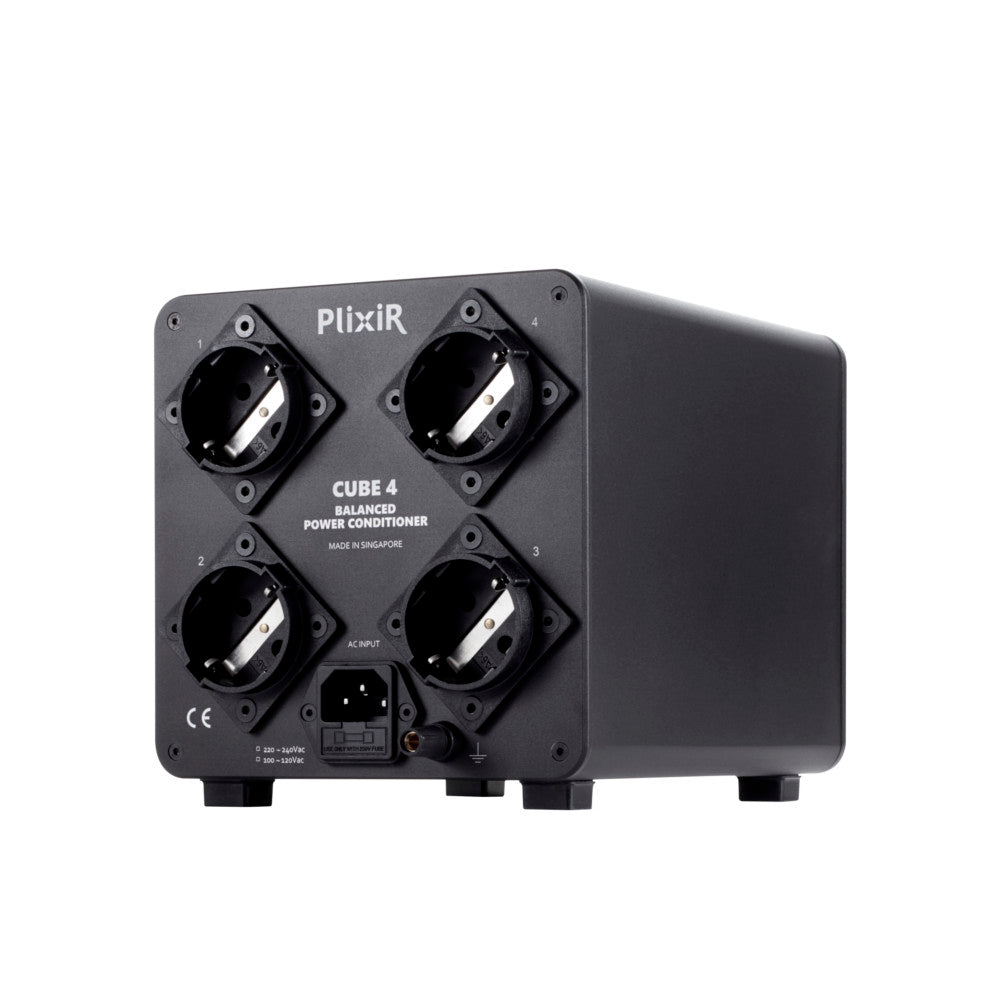

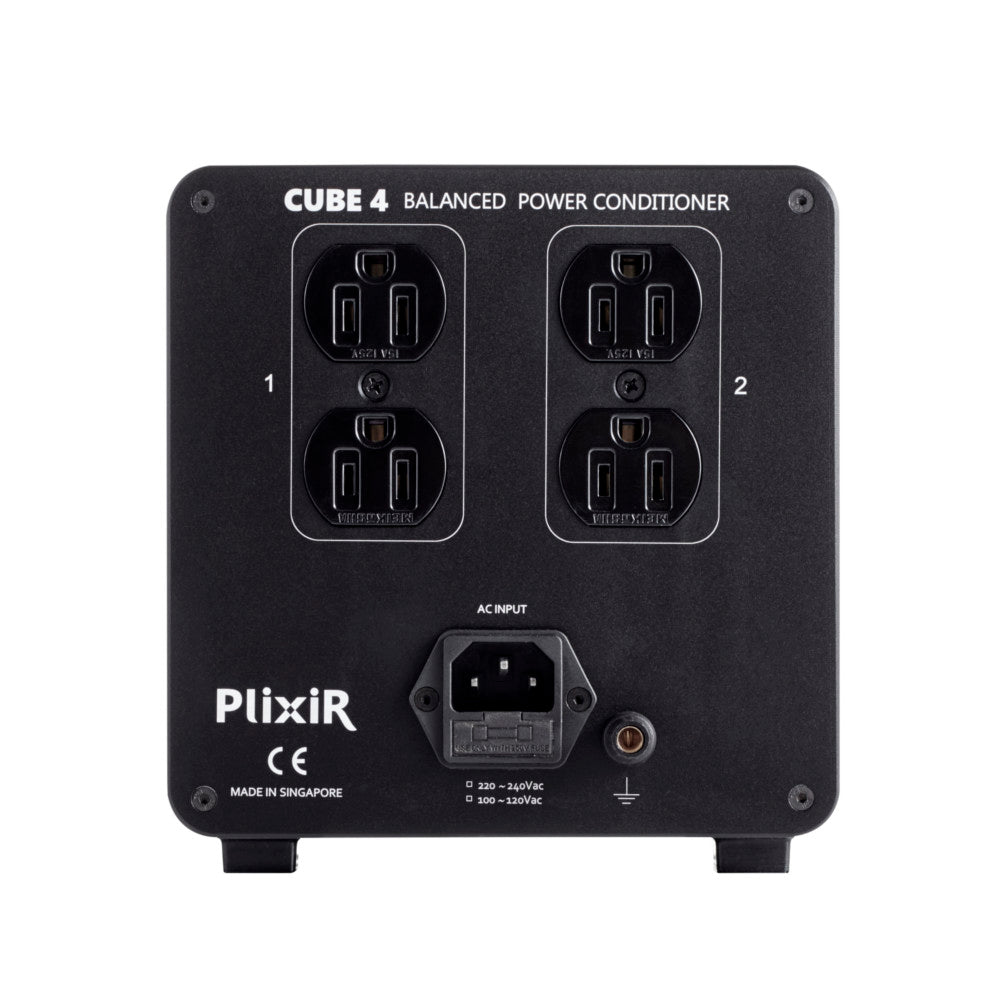

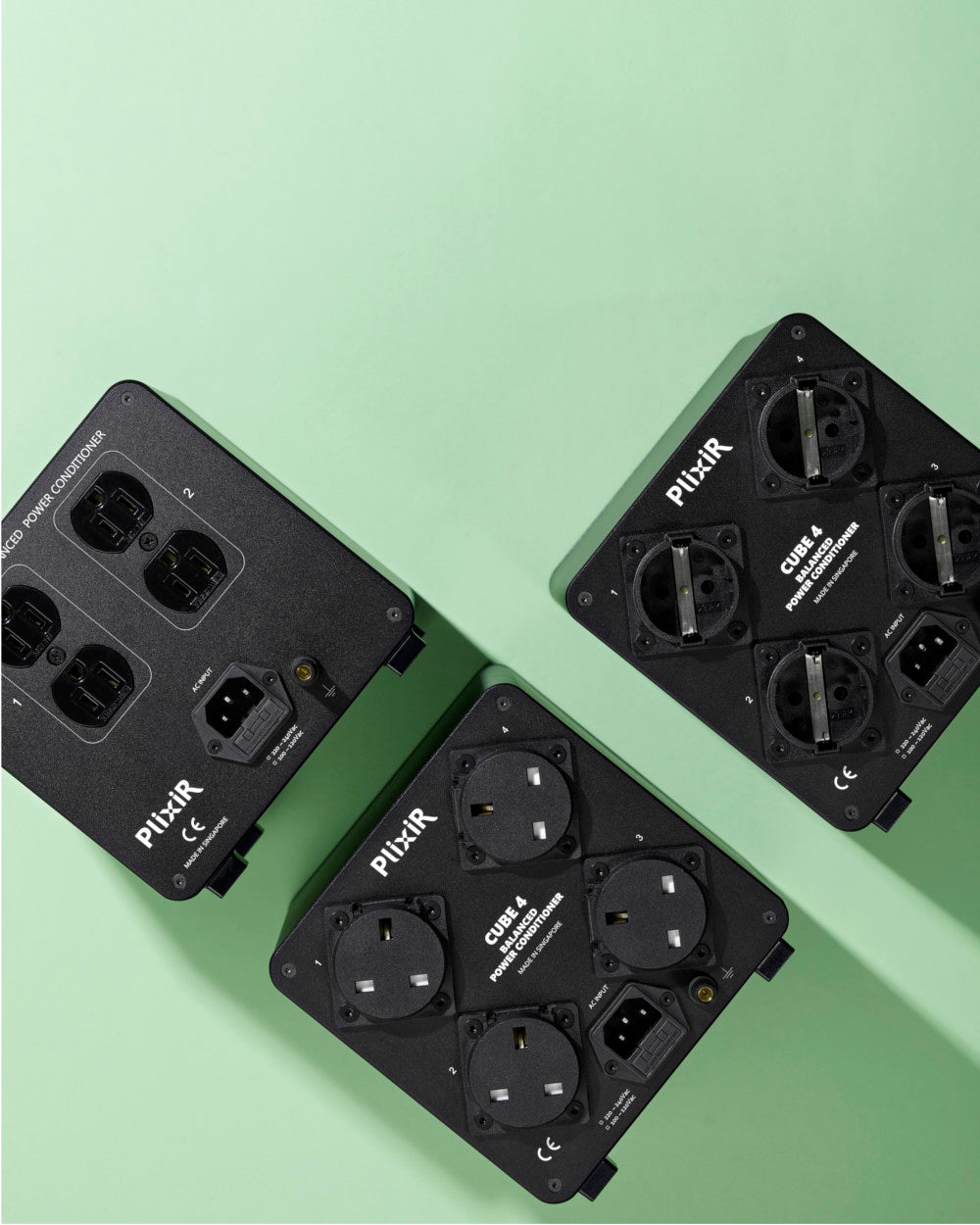

Cube 4 BAC

Input/Output:

220Vac~240Vac 100Vac~120Vac

Socket:

USA socket UK Socket Schuko Socket

Variant

$1,700.00 SGD

In response to customers’ requests for a high performance and cost effective alternative to our Top of the line ELITE balanced power conditioner, we now introduce our Cube series. The Cube 4 uses a Noratel made, audio grade balanced transformer core derived from the Elite’s XQ transformer core technology, giving it high immunity to DC voltage components on the power lines, as well as low noise. The Cube 4 will allow customers to enjoy very high quality balanced power conditioning at an affordable price. The Cube 4 also comes in USA / Schuko / UK / Australia AC outlets options.

The Cube 4, with 750 Watts of power, is designed for source equipment and small to medium sized amplifier (Class A/B, up to 100W into 4 ohms) setup. It naturally reduces the incoming AC mains noise while improving the current delivery to your system. Based on a custom single winding balanced power transformer, ground loop current and noise is reduced to negligible level to equipment connected to it, making it suitable for sensitive equipment like turntable and phono stages.

Features
• 4 USA/EU/UK outlets for Hi-fi equipment use. Designed for source equipment, noise sensitive equipment and small to medium sized amplifier setup.
• Custom-wound Noratel made, audio grade balanced transformers.
• Single-winding transformer dedicated models for 120 Vac and 230 Vac input/output, and each transformer only has a single winding for their intended application for the best performance possible.
• Ground reference / Earth binding post. This is a connection to the incoming earth. It is meant for customer to connect equipment / phono stage grounding cable for hum noise reduction.
• No on / off switch (always on) for best sound quality possible. 99% of the time PLiXiR customers switch on their BAC and keep it running 24/7. The removal of the on/off switch reduces the number of connections we have to make internally and the result is a big improvement on the sound quality of the Cube BAC as a final product.

Specifications

No. of Sockets (USA): 4
No. of Sockets (Schuko/UK): 4
Max Power: 750W
Typical Power Amp Supported: 100W (2 Channel Class A/B)

Two Voltage variants
1. Input 100~120Vac to output 100~120Vac balanced 60hz, 6.4Amps peak continuous current delivery.
2. Input 220~240Vac to output 220~240Vac balanced 50hz, 3.2Amps peak continuous current delivery.

Weight in KG: 11.0
Dimensions in CM: 16.0 x 21.5 x 16.0
(Width x Depth x Height*)
* Height including footers.

Casing Finish
Black anodized, sandblasted aluminium

Technology and Craft

Our Cube range of balanced power conditioner is based on an audio grade, customed balanced power transformer design from Noratel, the inventor and premier toroidal power transformer manufacturer. With certain design elements derived from our top of the line Elite balanced power conditioner it offers the most optimal balance between cost and performance parameters (noise isolation, sound quality and current delivery) in a simple package.

LEARN MORE

Other Features

Master-crafted

Build and tested by Master craftsman -- Each BAC is hand-made by a master craftsman. As much as possible, all electrical connections are done by point to point direct soldering with minimal use of connectors and joints that degrades sound.
